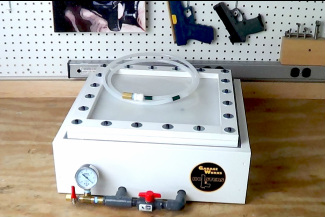

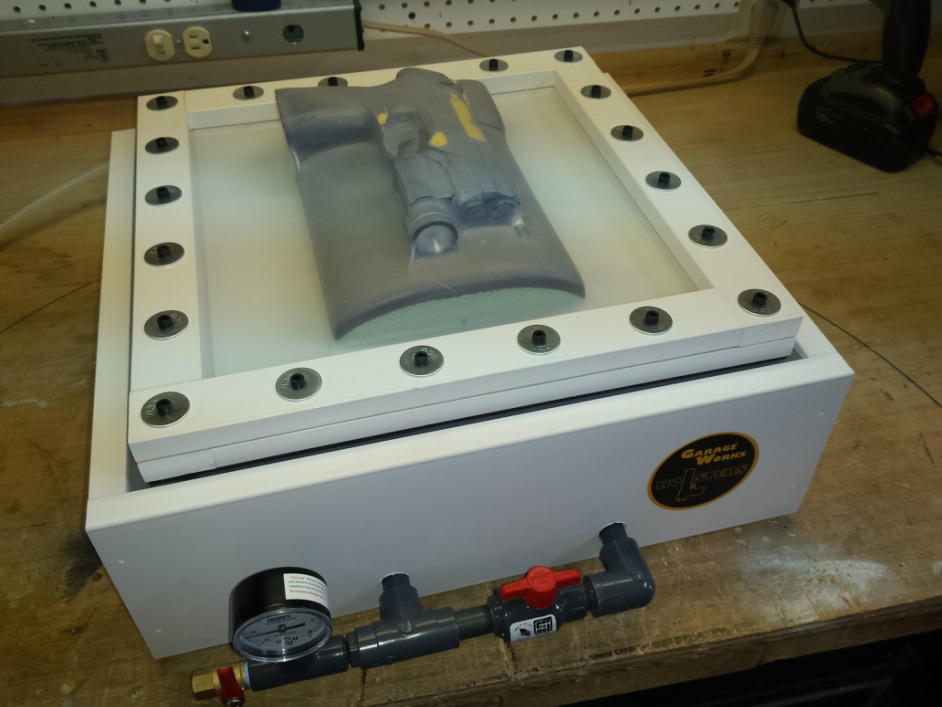

NEW GEN III PLUG-N-PLAY Vacuum Press
|
What we have done is taken a well proven design hand built and hand assembled maintained the performance and added some extras to increase value and easy setup.
|
|

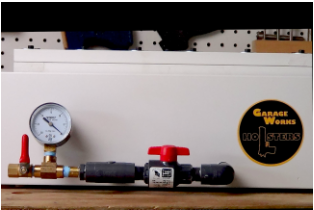

CONTROLS
3/8" Ball valve to direct the vacuum to the table, 1/4"Ball valve to release the vacuum hold from the table. Quality vacuum gauge to monitor the table. |
|

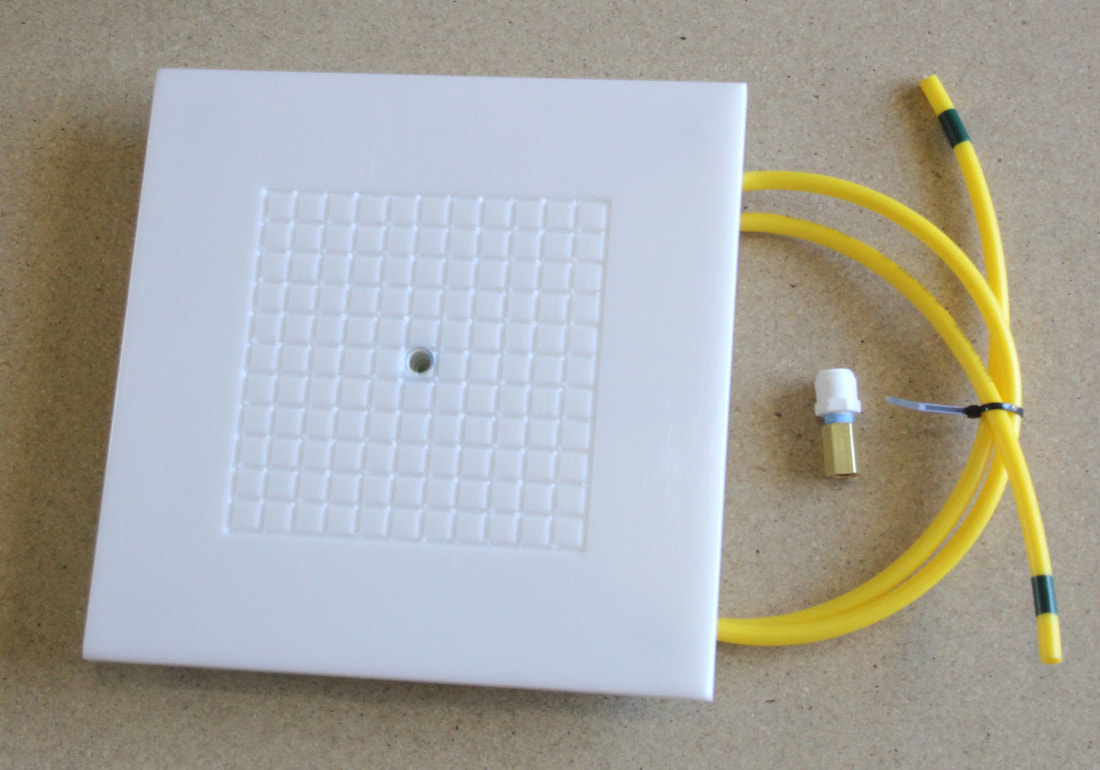

WORK SURFACE
We have a 12"x12" solid [no flexing under vacuum] work surface |
|

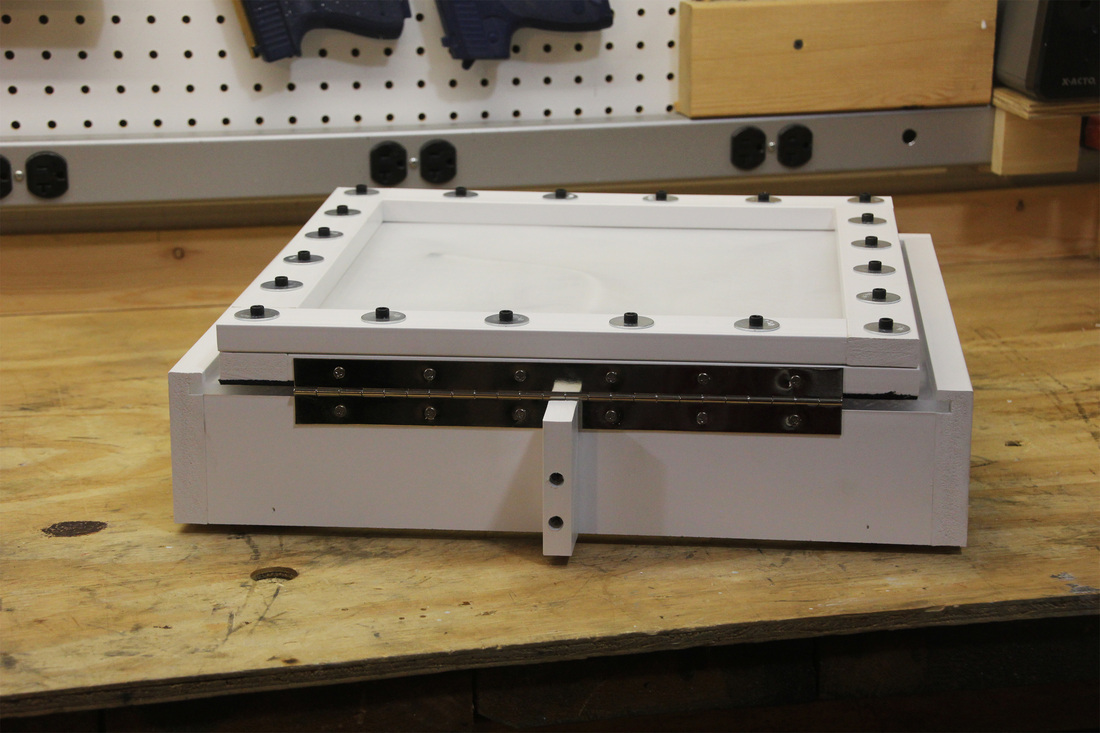

.HINGES
Hinged lid frame with hinge stops designed to keep the frame lid in a vertical position while working |
|

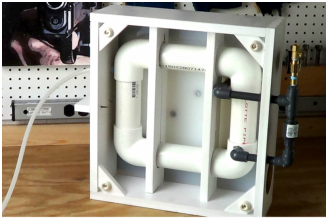

INSIDE
Built in surge tank to allow for a lower CFM pump to be used and not compromise performance |
|
SETUP

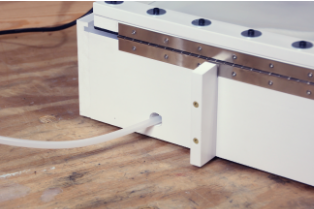

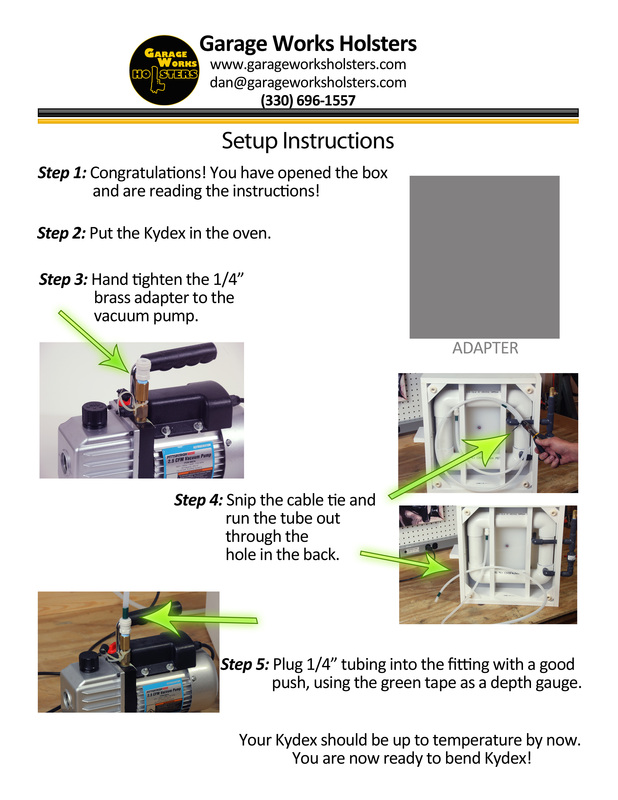

We have done ALL the leg work and trips to the hardware to get you hooked up to your vacuum pump. Out of the back of the surge tank is 6' of 1/4" tubing and the adapter to fit on the 1/4" flare on the pump. |
|
Vacuum Pump - NOT INCLUDED

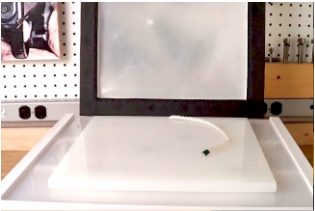

All presses now ship with TRANSLUCENT silicone membrane
|
|

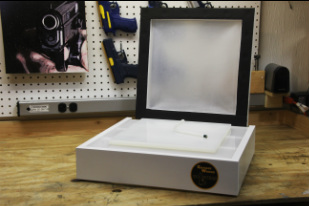

This press has been added to the GEN III plug-n-play line up at the request of makers needing a larger work surface. This press offers all the same features as listed above, with a work surface 12" x 17" to handle the largest of revolvers and Bowie style knives.
|
Vacuum Pump - NOT INCLUDED
All presses now ship with TRANSLUCENT silicone membrane
|
|
This Production press features two 12"x12"work tables that work independently of each other using the control valves,while using the same built in surge tank and one single low cfm vacuum pump.
|
Vacuum Pump - NOT INCLUDED
|
|
|
|
|

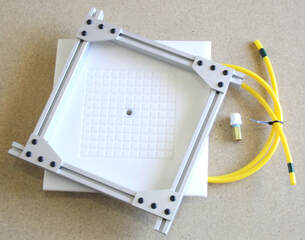

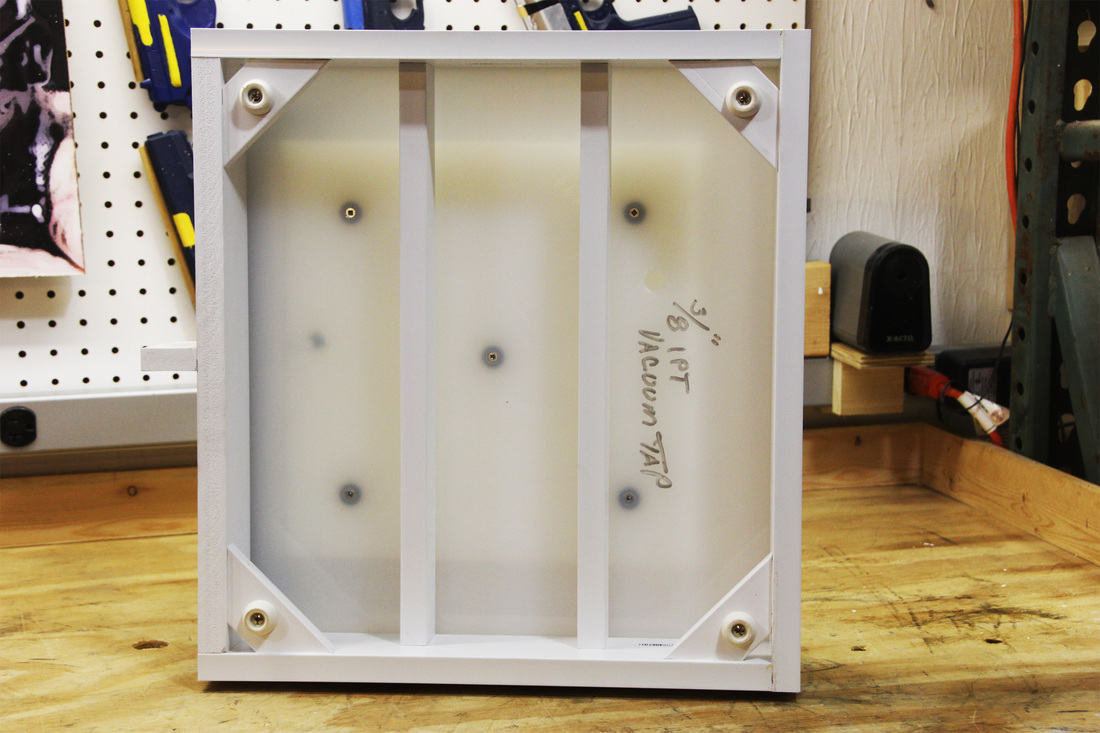

STAND-ALONE PRESS Build your own from here. We offer our 2pc. lid and work platform complete with 3/8"NPT hook up under work surface ready to press Kydex.
|
Vacuum Pump - NOT INCLUDED
We recommend you add the Hardware Kit to complete your build .
|
|
ACCESSORIES
Replacement parts
Our Curved Jig offers a low profile to allow it to be user friendly with any press. It measures 11/2" tall x 7" wide x 11" long. To allow bottom side definition 1/2" closed cell foam glued in place for one less thing to move during pressing.This jig also allows for complete air evacuation (no tenting) with the air channel cut from front to back
|
|
This is our PLUG-n-PLAY Hardware Kit , complete with;
This kit is intended for your own build |
|
TRERICE
30"-0 Vacuum Gauge 2" Face 1/4" NPT |
|
TRANSLUCENT SILICONE
replacement membrane
|
Click to set custom HTML
|
|
|
|
|
|
SPECIFICATIONS:
Valve & fittings are Sch. 80 PVC
Work surface is POLYPROPYLENE
Translucent silicone membrane;
Type- Translucent Grade
Durometer, Shore "A"- 50
Specifis Gravity- 1.15g/cc
Tensile Strength- 1000psi
Elongation- 500%
Temperature Range- -80 to 450°F (500°intermittent)
- Pump recommendations.. Our press including the Production Press has been designed around a 2.5 cfm(cubic feet per minute)pump. Point being ALL pumps will pull 30in.hg ! Larger cfm #'s only means volume of air moved per minute NOT how strong they are! http://en.wikipedia.org/w/index.php?title=Cubic_foot&redirect=no
- Materials Used.. All frame work is made with PVC lumber, glued & screwed (nailed)
Valve & fittings are Sch. 80 PVC
Work surface is POLYPROPYLENE
Translucent silicone membrane;
Type- Translucent Grade
Durometer, Shore "A"- 50
Specifis Gravity- 1.15g/cc
Tensile Strength- 1000psi
Elongation- 500%
Temperature Range- -80 to 450°F (500°intermittent)
- Foot Print.. 17½" x 18" x 8"
- Shipping WT.. 21#
